Executing Azure Logic Apps Effectively With Data Factory

Azure Logic Apps and Azure Data Factory (or Synapse Analytics) are a great combination. You can execute Azure Logic Apps from Azure Data Factory or Synapse Analytics easily.

Azure Data Factory is a cloud-based data integration service that allows you to create pipelines that ingest data, transform it, and move it into different destinations. It’s a great way to connect disparate systems and provide operational insights across your organization—but it can be tricky to set up without help.

That’s where Azure Logic Apps comes in. Azure Logic Apps is part of many integration solutions for transactional systems, and in many cases, you might need to execute Azure Logic Apps from analytical platforms like Azure Data Factory or Synapse Analytics. I’ll show you how to use these two powerful services effectively together—so let’s get started!

Download the Solution

You can download the solution from my GitHub repository.

How Do I Execute Azure Logic Apps From Azure Data Factory?

If you’re looking to unlock the power of Azure Logic Apps within your data integration processes, you’ll want to learn how to execute them from Azure Data Factory. This way, you’ll be able to use the full range of features and capabilities available on the Data Factory platform.

So how exactly do you execute Azure Logic Apps from Azure Data Factory? Follow these simple steps:

1. Within your Azure Data Factory, create a new pipeline

2. Add some parameters to make the pipeline reusable

3. Add a web activity to execute Azure Logic App

4. Configure your Azure Logic Apps to be executed synchronously

Create an Azure Data Factory Pipeline to Execute Azure Logic Apps

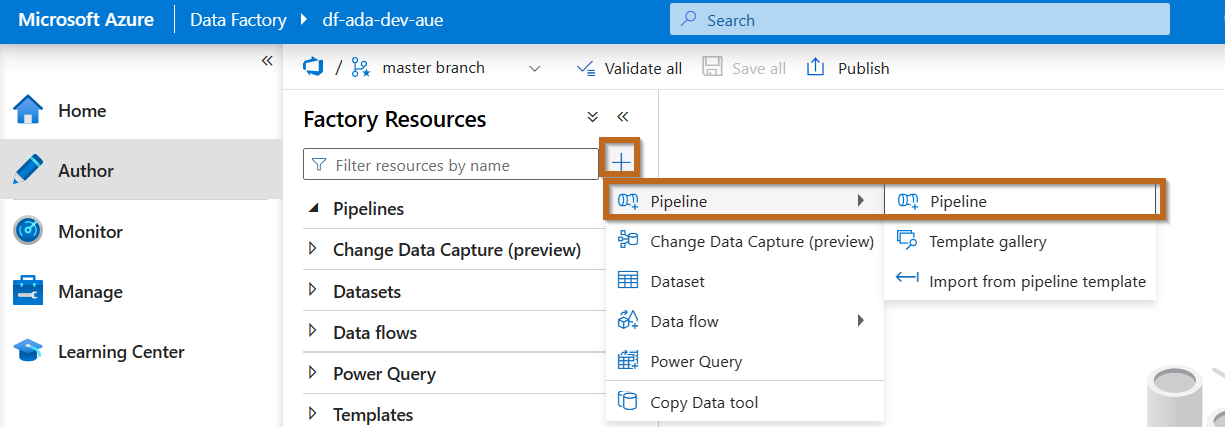

In Azure Data Factory, create a new pipeline.

Add some parameters to make the pipeline reusable

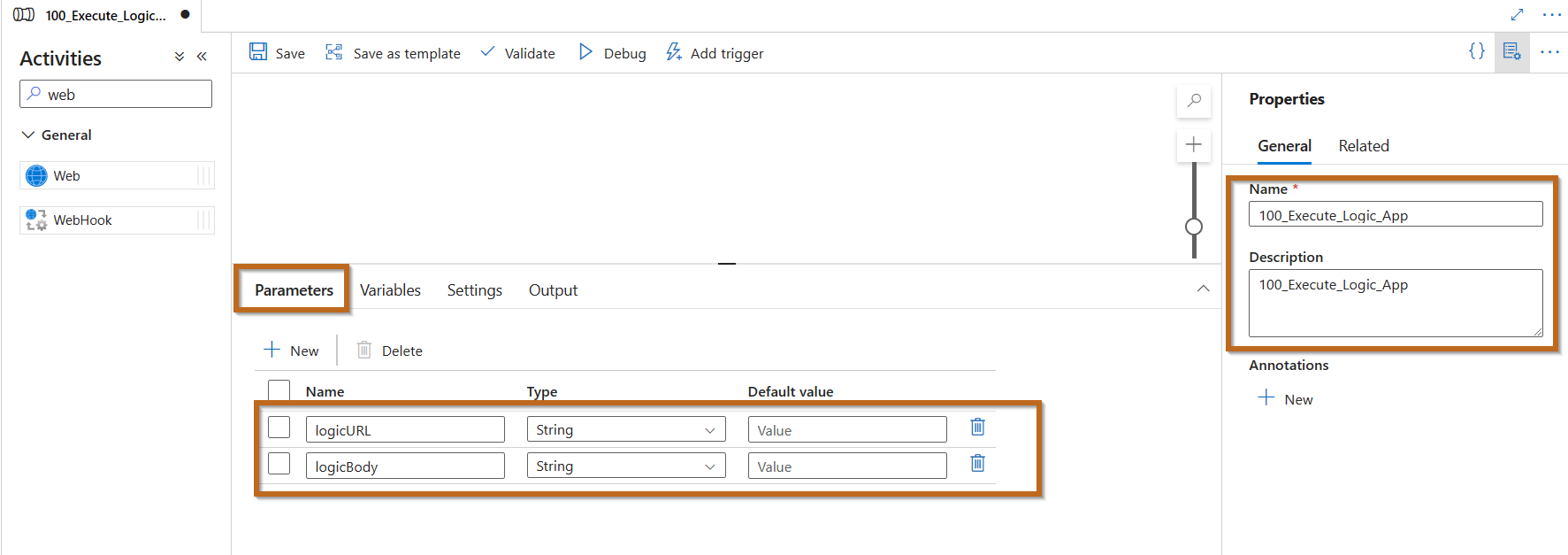

Configure the parameters and properties.

In the case above, I am adding the following:

• logicURL: the Azure Logic App URL that will trigger the workflow
• logicBody: to pass some parameters to the Azure Logic App

Add a Web Activity to Execute Azure Logic Apps

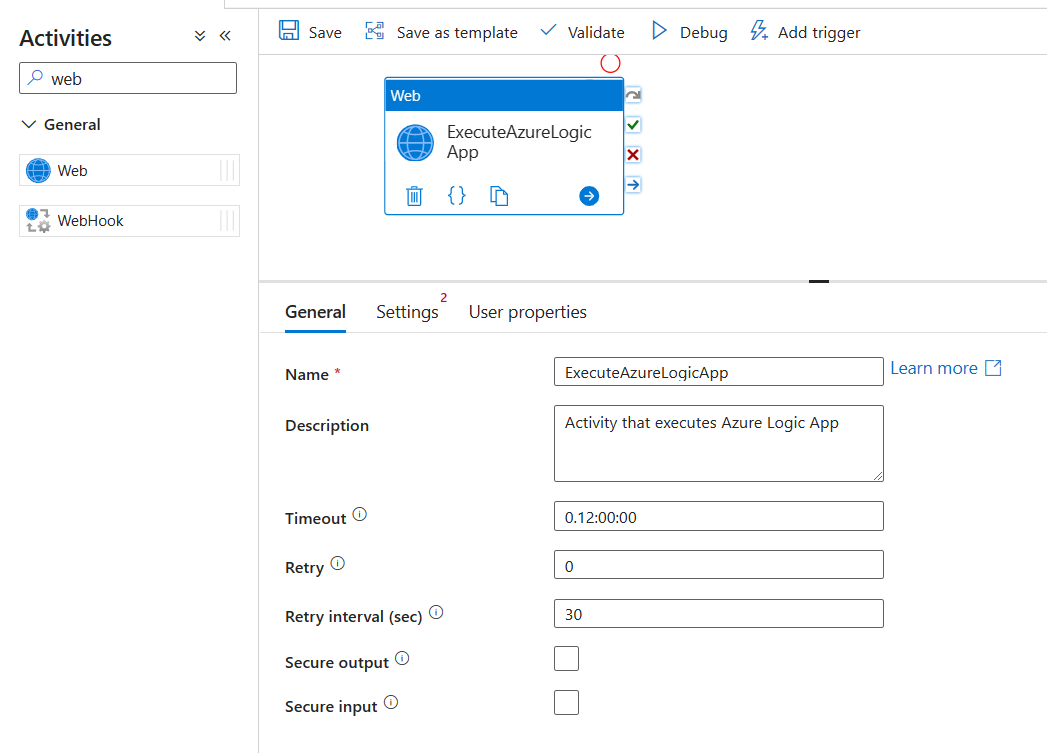

Add the web activity as follows:

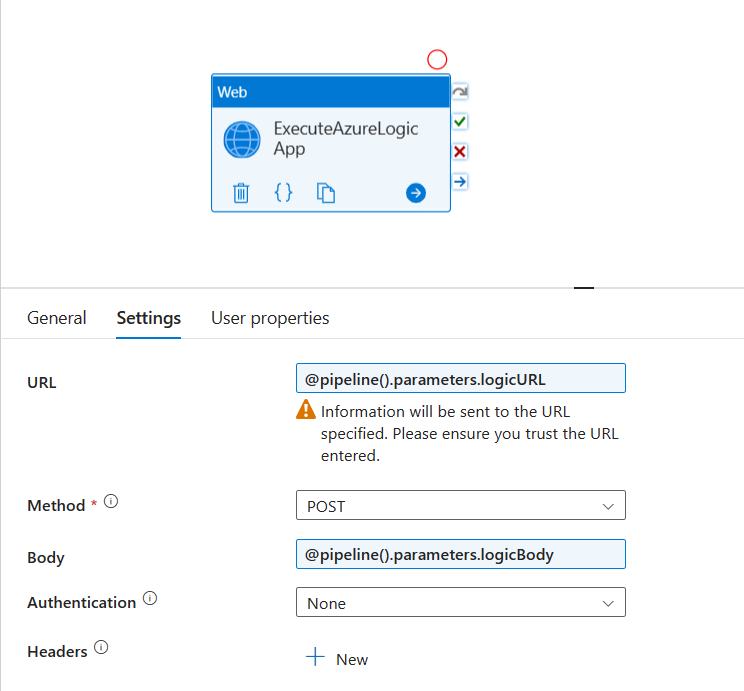

Configure settings with the parameters created before.

Configure Your Azure Logic App

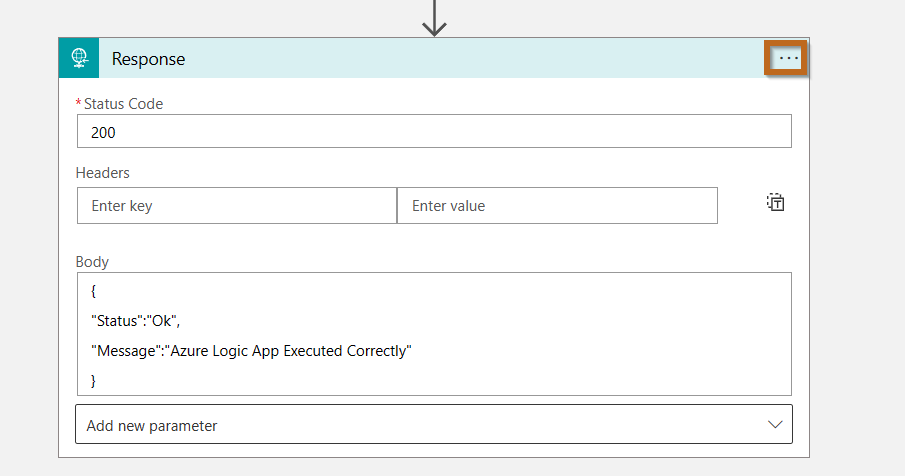

If you want the Azure Data Factory pipeline to finish when the Azure Logic App finishes, you must configure the Response for your Azure Logic App.

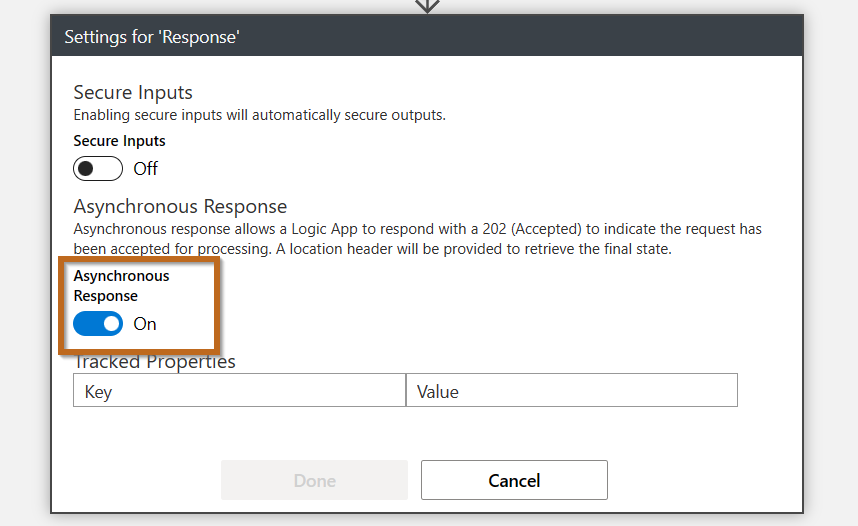

Enable the following option:

Test Triggering Azure Logic App from Azure Data Factory

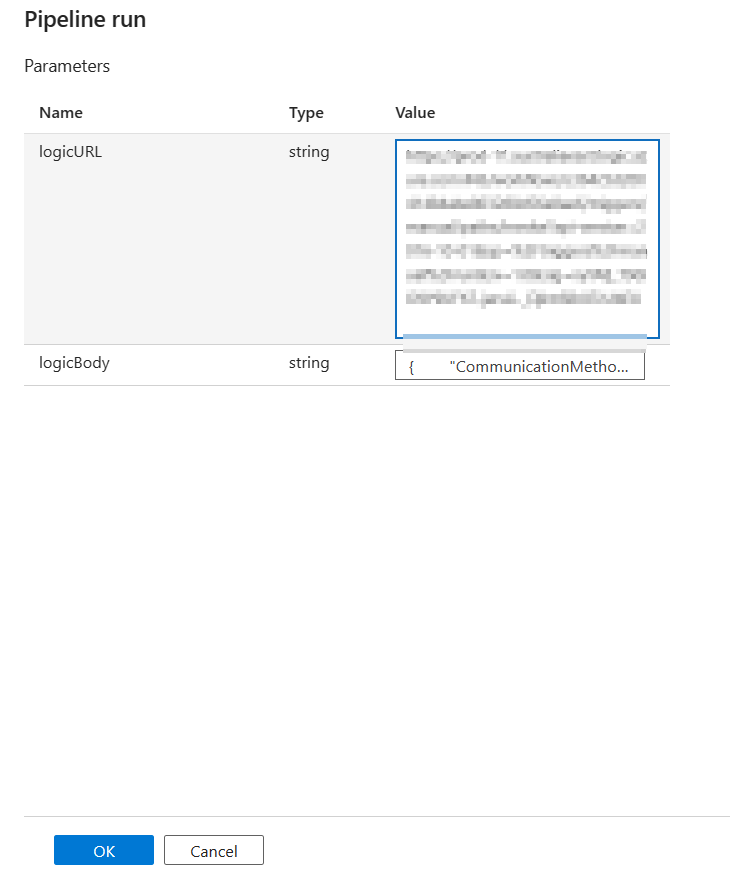

In Azure Data Factory, debug or trigger with your parameters.

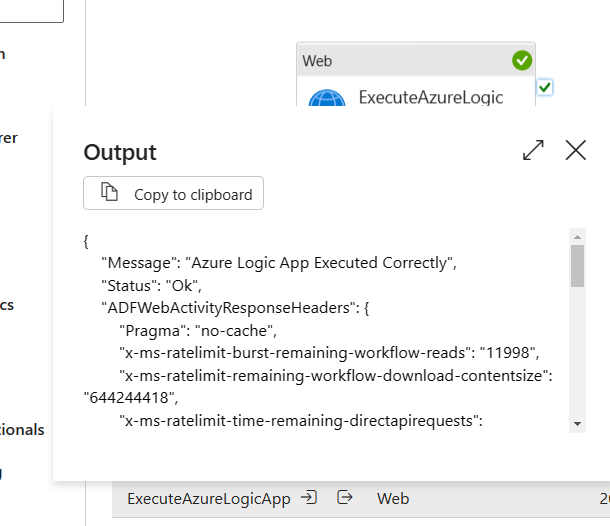

Once it finishes, you can see the results in Azure Data Factory.

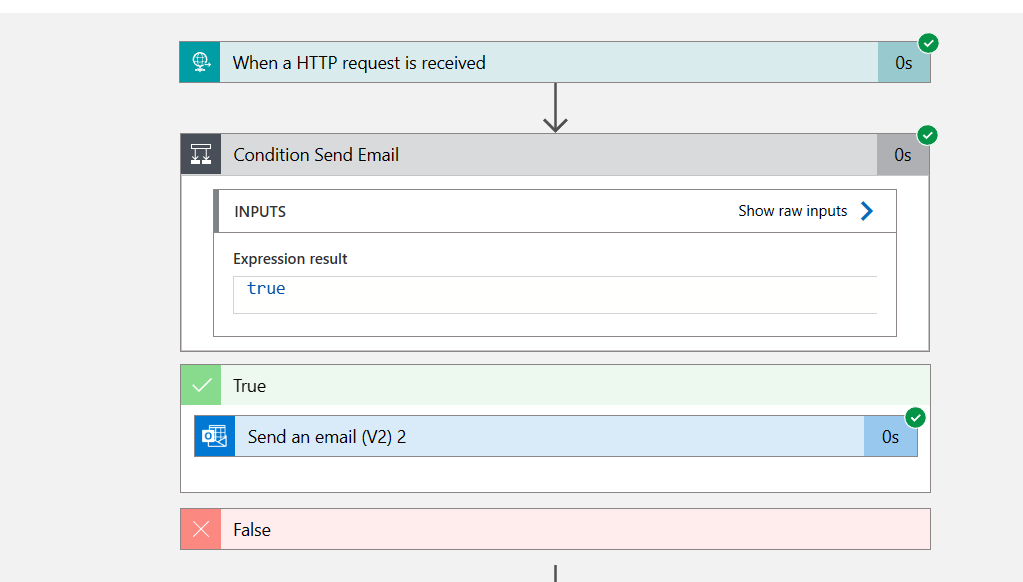

Same as in Azure Logic Apps.

You are ready to integrate Azure Logic Apps and Azure Data Factory (or Synapse Analytics).

Conclusion

To summarize, using Azure Data Factory to execute Azure Logic Apps is an efficient and effective way to automate manual processes, improve productivity, and streamline collaboration.

Having the ability to trigger Logic Apps with Data Factory gives you a powerful tool to connect disparate data sources, orchestrate multiple activities, and automate workflow tasks. Ultimately, it can help you to create an end-to-end data integration and data warehousing solution that leads to enhanced performance, improved customer satisfaction, and greater cost savings.
