Azure Logic App to Send Custom Messages

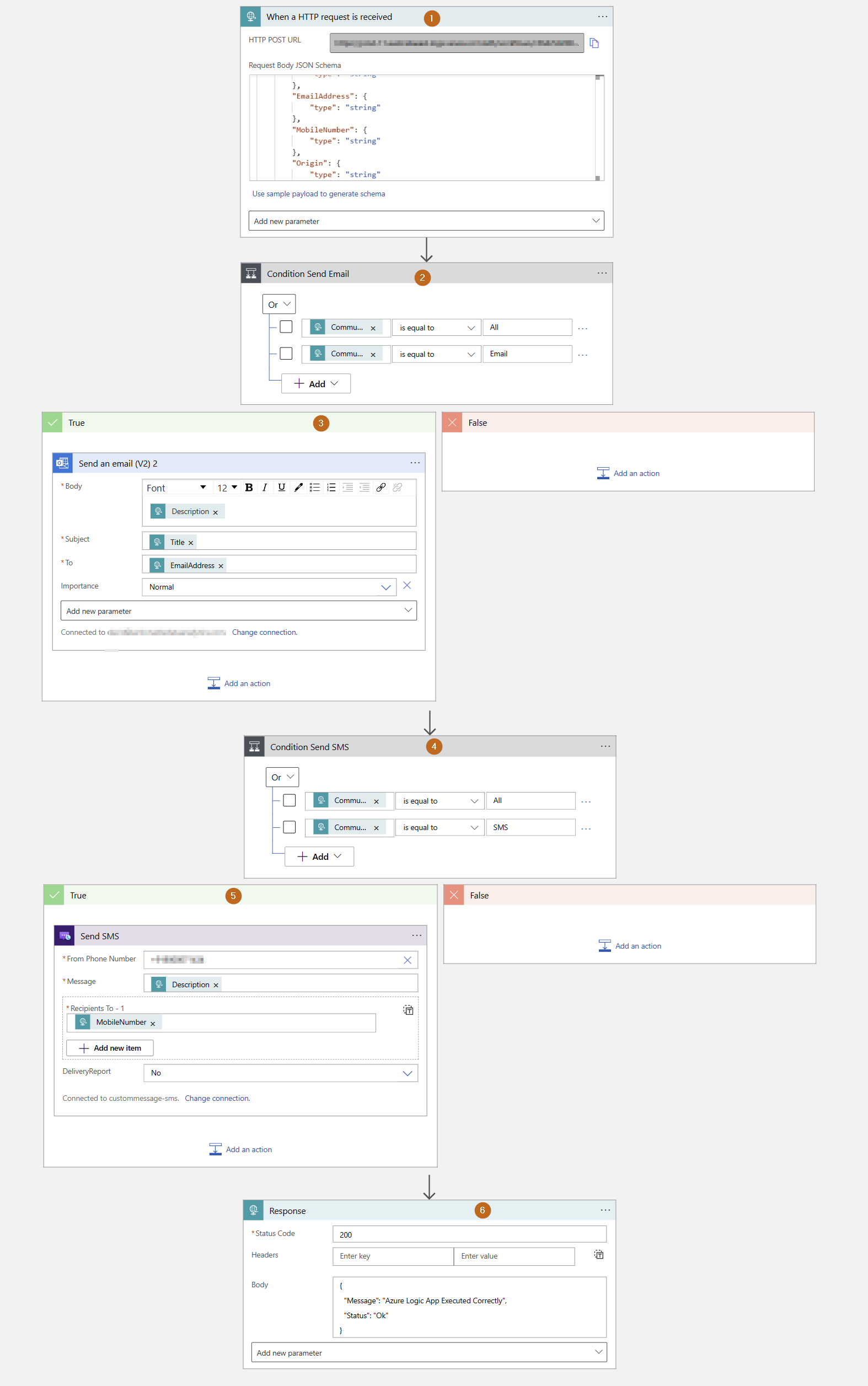

Add the following activities to your Azure Logic App.

1) Trigger: The trigger for the Azure Logic Apps is a HTTP request.

In the request Body JSON Schema there should be name/value pairs for:

• Title
• Origin
• Description (this can be empty)
• CommunicationMethod (SMS, email or ALL)
• MobileNumber (this can be empty)
• EmailAddress (this can be empty)

Actions (2 possible actions):

1. Send SMS with Azure Communication Services: it uses MobileNumber parameter as destination and Description as the SMS message.
2. Office 365 Email: it uses Title for the subject, Description for the body and EmailAddress as the To: email

• If the CommunicationMethod is Email, only the email address needs to be sent.

Sample HTTP Body request:

{ "Title":"Test Title", "Origin":"System A", "Description":"This is a message", "CommunicationMethod":"Email", "MobileNumber":"", "EmailAddress":"[email protected]" }

• If the CommunicationMethod is SMS, only the SMS needs to be sent.

Sample HTTP Body request:

{ "Title":"Test Title", "Origin":"System A", "Description":"This is a message", "CommunicationMethod":"SMS", "MobileNumber":"+61044555888", "EmailAddress":"" }

• If the CommunicationMethod is All, the SMS and Email need to be sent.

Sample HTTP Body request:

{ "Title":"Test Title", "Origin":"System A", "Description":"This is a message", "CommunicationMethod":"All", "MobileNumber":"+61044555888", "EmailAddress":"[email protected]" }
